dynamic_modbus_master::DynamicModbusMaster Class Reference

Modbus Master Controller. More...

#include <DynamicModbusMaster.h>

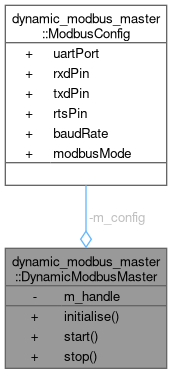

Collaboration diagram for dynamic_modbus_master::DynamicModbusMaster:

Public Member Functions
ModbusError	initialise (ModbusConfig config)
	Initialize the Modbus Master controller and set up the communication parameters.
ModbusError	start ()
	Start the Modbus communication stack.
ModbusError	stop ()
	Stop the Modbus communication stack.

Private Attributes
ModbusConfig	m_config
void *	m_handle

Detailed Description

Modbus Master Controller.

Dynamic Modbus Master Class to manage the initialisation, starting and destroying of the underlying esp_modbus library.

Member Function Documentation

initialise()

ModbusError dynamic_modbus_master::DynamicModbusMaster::initialise

(

ModbusConfig

config

)

Initialize the Modbus Master controller and set up the communication parameters.

This function initializes the Modbus Master controller and sets up the communication parameters for the Modbus connection.

Parameters

config

The configuration of the Modbus connection.

Returns

An instance of ModbusError representing the result of the initialization.
Possible Results:

• ModbusError::OK - Initalisation was successful
• ModbusError::PORT_NOT_SUPPORTED - The MB Port Type was not supported
• ModbusError::INVALID_STATE - Inialisation failure
• ModbusError::INVALID_ARG - Invalid Argument
• ModbusError::FAILURE_OR_EXCEPTION - Undetermined Failure

start()

ModbusError dynamic_modbus_master::DynamicModbusMaster::start

(

)

Start the Modbus communication stack.

This function starts the Modbus communication stack by calling the mbc_master_start() function. If an error occurs during the start process, an error log is generated using the ESP_LOGE macro with the tag "DynamicModbusMaster" and the error name is printed using the esp_err_to_name() function. The function returns ModbusError::INVALID_ARG to indicate an invalid argument error. If the start process is successful, the function returns ModbusError::OK.

Returns

An instance of ModbusError representing the result of the start process.
Possible Results:

• ModbusError::OK - Start process was successful
• ModbusError::INVALID_ARG - Invalid argument error

stop()

ModbusError dynamic_modbus_master::DynamicModbusMaster::stop

(

)

Stop the Modbus communication stack.

This function stops the Modbus communication stack by calling the mbc_master_destroy() function. If an error occurs during the stop process, an error log is generated using the ESP_LOGE macro with the tag "DynamicModbusMaster" and the error name is printed using the esp_err_to_name() function. The function returns ModbusError::INVALID_STATE to indicate an invalid state error. If the stop process is successful, the function returns ModbusError::OK.

Returns

An instance of ModbusError representing the result of the stop process.
Possible Results:

• ModbusError::OK - Stop process was successful
• ModbusError::INVALID_STATE - Invalid state error, likely indicating that the Modbus was never started

Member Data Documentation

m_config

ModbusConfig dynamic_modbus_master::DynamicModbusMaster::m_config

private

m_handle

void* dynamic_modbus_master::DynamicModbusMaster::m_handle

private

---

The documentation for this class was generated from the following files:

• dynamic_modbus_master/include/DynamicModbusMaster.h
• dynamic_modbus_master/DynamicModbusMaster.cpp
