SingleSlaveExampleDevice Class Reference

#include <SingleSlaveExampleDevice.h>

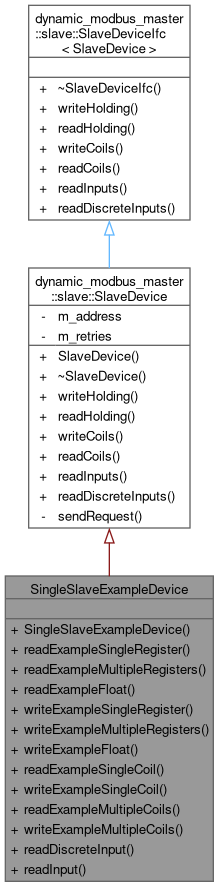

Inheritance diagram for SingleSlaveExampleDevice:

Collaboration diagram for SingleSlaveExampleDevice:

Public Member Functions
	SingleSlaveExampleDevice (uint8_t address, uint8_t retries)
uint16_t	readExampleSingleRegister ()
uint32_t	readExampleMultipleRegisters ()
float	readExampleFloat ()
void	writeExampleSingleRegister (uint16_t data)
void	writeExampleMultipleRegisters (uint32_t data)
void	writeExampleFloat (float data)
bool	readExampleSingleCoil ()
void	writeExampleSingleCoil (bool state)
uint16_t	readExampleMultipleCoils ()
void	writeExampleMultipleCoils (uint16_t coilStates)
bool	readDiscreteInput ()
uint16_t	readInput ()

Additional Inherited Members
Private Member Functions inherited from dynamic_modbus_master::slave::SlaveDevice
	SlaveDevice (uint8_t address, uint8_t retries)
	A class representing a slave device in a Modbus network.
	~SlaveDevice () override=default
template<ModbusData T>
ModbusError	writeHolding (uint16_t reg, T data) const
	Writes data to the holding registers of a Modbus slave device.
template<ModbusData T>
SlaveReturn< T >	readHolding (uint16_t reg) const
	Reads data from the holding registers of a Modbus slave device.
template<ModbusData T>
ModbusError	writeCoils (uint16_t reg, const T data, uint16_t coilNum) const
	Writes data to the coils of a Modbus slave device.
template<ModbusData T>
SlaveReturn< T >	readCoils (uint16_t reg, uint16_t coilNum)
	Reads data from the coils of a Modbus slave device.
template<ModbusData T>
SlaveReturn< T >	readInputs (uint16_t reg)
	Reads data from the input registers of a Modbus slave device.
template<ModbusData T>
SlaveReturn< T >	readDiscreteInputs (uint16_t reg)
	Reads data from the discrete inputs of a Modbus slave device.
Private Member Functions inherited from dynamic_modbus_master::slave::SlaveDeviceIfc< SlaveDevice >
virtual	~SlaveDeviceIfc ()=default
ModbusError	writeHolding (uint16_t reg, const D &data) const
	Write data to a holding register.
SlaveReturn< D >	readHolding (uint16_t reg) const
	Read data from a holding register.
ModbusError	writeCoils (uint16_t reg, const D &data, uint16_t coilNum)
	Write data to a group of coils.
SlaveReturn< D >	readCoils (uint16_t reg, uint16_t coilNum)
	Read data from a group of coils.
SlaveReturn< D >	readInputs (uint16_t reg)
	Read data from input registers.
SlaveReturn< D >	readDiscreteInputs (uint16_t reg)
	Reads data from discrete inputs in a Modbus slave device.

Constructor & Destructor Documentation

SingleSlaveExampleDevice()

SingleSlaveExampleDevice::SingleSlaveExampleDevice	(	uint8_t	address,
		uint8_t	retries
	)

Member Function Documentation

readDiscreteInput()

bool SingleSlaveExampleDevice::readDiscreteInput

(

)

readExampleFloat()

float SingleSlaveExampleDevice::readExampleFloat

(

)

readExampleMultipleCoils()

uint16_t SingleSlaveExampleDevice::readExampleMultipleCoils

(

)

readExampleMultipleRegisters()

uint32_t SingleSlaveExampleDevice::readExampleMultipleRegisters

(

)

readExampleSingleCoil()

bool SingleSlaveExampleDevice::readExampleSingleCoil

(

)

readExampleSingleRegister()

uint16_t SingleSlaveExampleDevice::readExampleSingleRegister

(

)

readInput()

uint16_t SingleSlaveExampleDevice::readInput

(

)

writeExampleFloat()

void SingleSlaveExampleDevice::writeExampleFloat

(

float

data

)

writeExampleMultipleCoils()

void SingleSlaveExampleDevice::writeExampleMultipleCoils

(

uint16_t

coilStates

)

writeExampleMultipleRegisters()

void SingleSlaveExampleDevice::writeExampleMultipleRegisters

(

uint32_t

data

)

writeExampleSingleCoil()

void SingleSlaveExampleDevice::writeExampleSingleCoil

(

bool

state

)

writeExampleSingleRegister()

void SingleSlaveExampleDevice::writeExampleSingleRegister

(

uint16_t

data

)

---

The documentation for this class was generated from the following files:

• dynamic_modbus_master/examples/SingleSlaveDevice/main/SingleSlaveExampleDevice.h
• dynamic_modbus_master/examples/SingleSlaveDevice/main/SingleSlaveExampleDevice.cpp
• dynamic_modbus_master/examples/SingleSlaveDeviceAggregate/main/AggregateDevice.cpp
